Mcgaughys 2020-2026 GM 2500 Truck 7" Lift Kit using new M84 reservoir shocks
Fits 2020 2021 2022 2023 2024 2025 GM 2500 trucks
7″-9″ Premium Lift kit Lift kit comes powder-coated gloss black Comes with stainless steel inserts for front crossmember & compression struts
Kit can be adjusted up to 9″. Must add Torsion Keys #52410 (sold separately), Upper Control Arms #52414 (sold separately), and Rear Leaf Spring Shims #52361 (sold separately).
If your vehicle is equipped with the optional factory heavy duty leaf spring (camper package), then provided u-bolts will be too short. You will need to either source out longer u-bolts or purchase the 3500 lift kit (#52459) instead. As those u-bolts will be longer.
Lift kit and components will NOT work if your vehicle is equipped with the factory Multimatic DSSV Dampers (shocks)
Free shipping

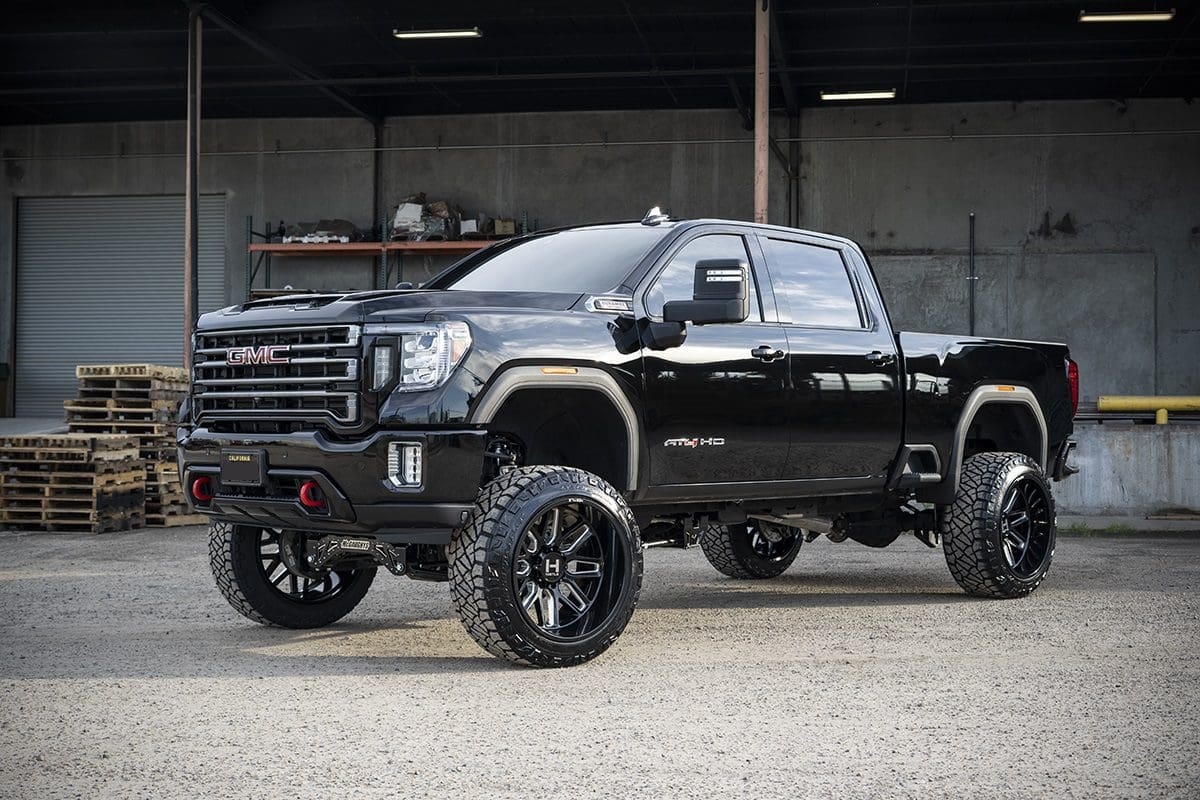

4th picture show truck with optional boxed compression struts upgrade (52450) rear traction bar kit (52418)
Billet traction bar faceplates (51341 black finish 51343 raw finish)
Billet compression strut faceplates (51441 black finish 51443 raw finish)
Billet front crossmember faceplate (51041 black finish 51043 raw finish)
not pictured upgrades

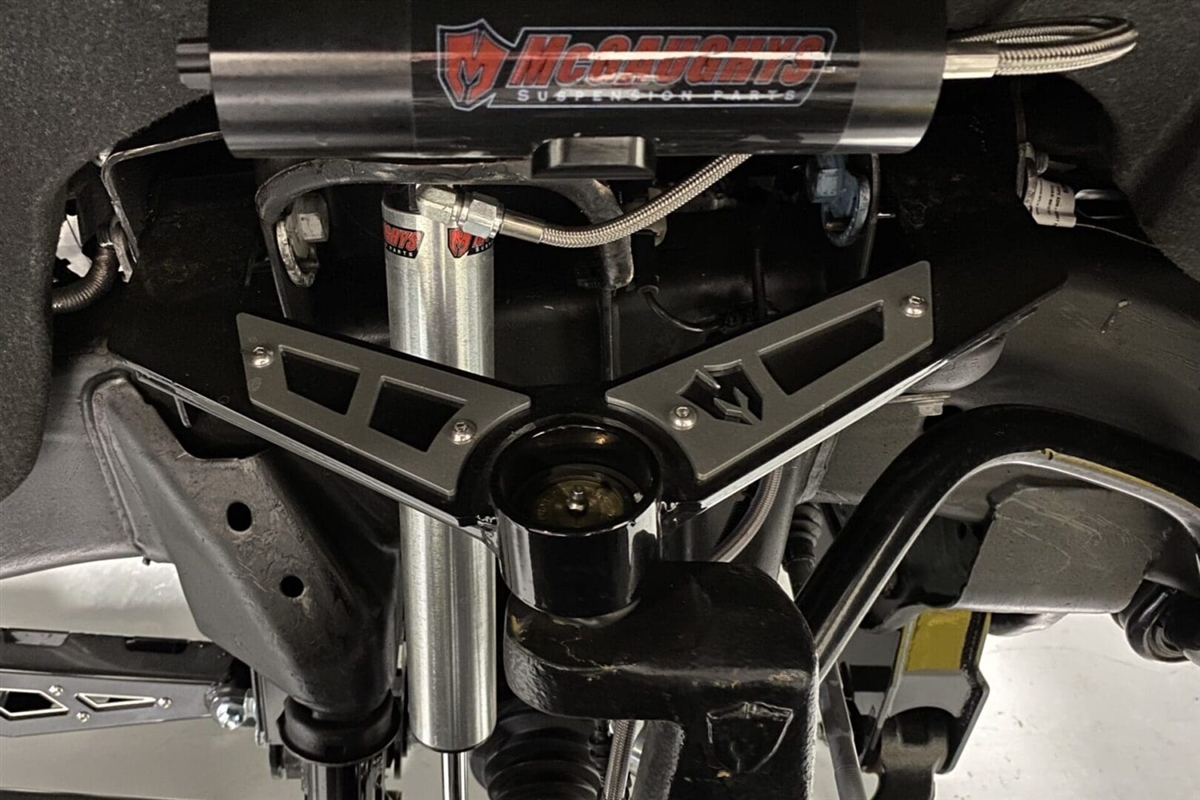

Front Reservoir Shock Mount (52357 picture 5)
Upper control arms 52414
Billet ball joint caps for arms (51052 polished finish 51051 black )
Lift keys 52410
leaf shims 52361

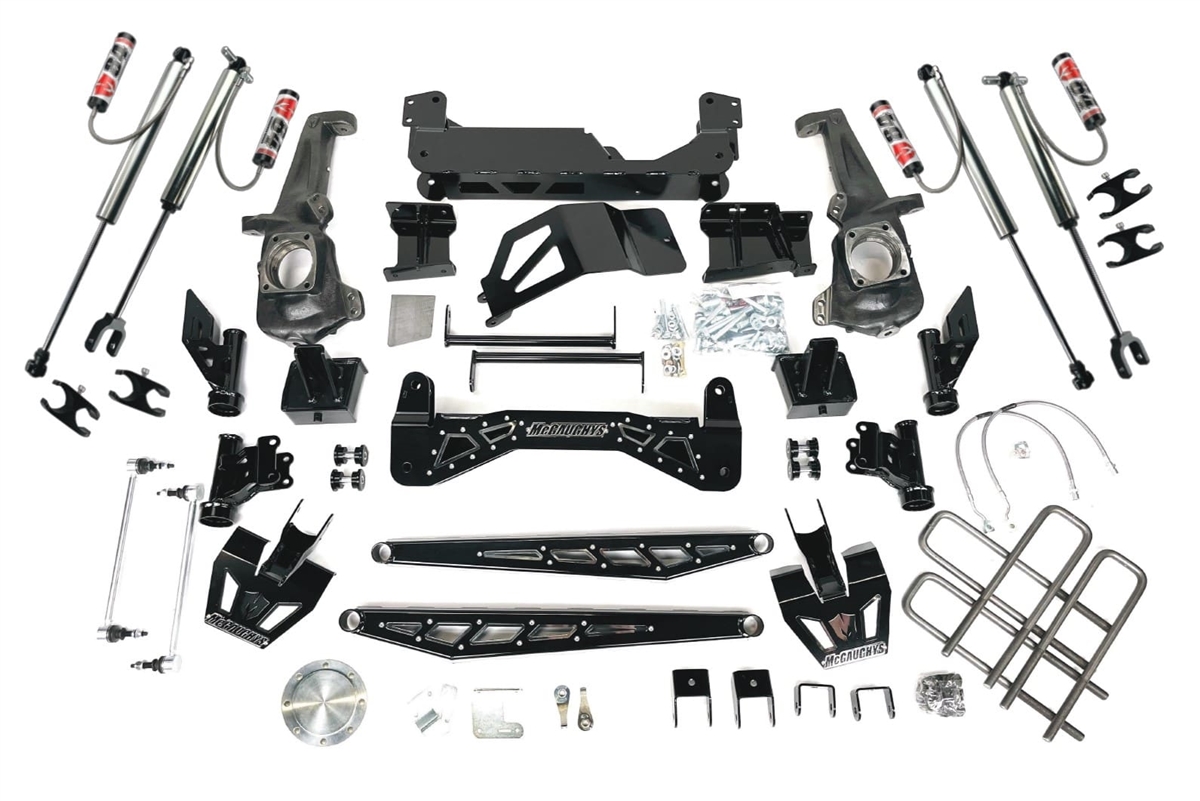

Kit Includes:
(2) Spindles, (2) Lift Blocks w/ U-bolts & Hardware, (1) Front Crossmember, (1) Rear Crossmember, (1) Skid Plate, (2) Sway Bar End Links, (2) Compression Struts, (2) Lower A-frame Support Rods, (2) Torsion Bar Drops, (1) Differential Drop, (1) CV Axle Spacer, (1) Weld-in Filler Plate, (4) Front & Rear Bump Stops, (1) Brake Cable Extender, (1) Rear Brake Bracket Extender, (2) Rear Compression Strut Retainer Brackets, (2) Front Brake Line Bracket Extenders, (2) Front M84 Reservoir Shocks & (2) Rear M84 Reservoir Shocks
|
|
|
 |
|
 |
|
